Mitutoyo MeasurLink SPC Software Real-Time Standard v10

Mitutoyo MeasurLink Real-Time SPC Software

MeasurLink SPC Real-Time Standard is the MeasurLink software module designed for customers who want to acquire and analyze data in real-time and check variable and attribute inspection to maximize production and minimize defects.

MeasurLink SPC Real-Time Standard allows data collection from each hand tool and instrument while allowing real-time display of statistical processing data such as control charts, histograms and process capability indices.

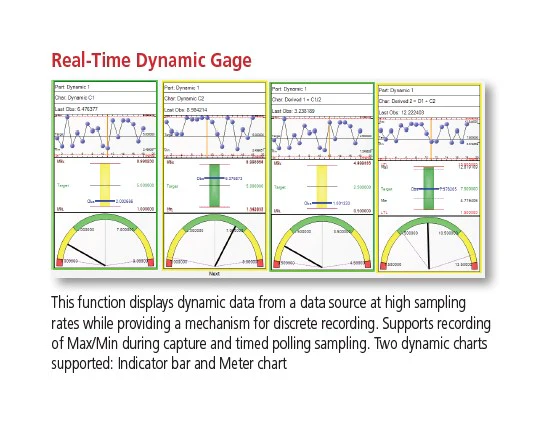

It has views to allow the user to create Parts, Characteristics with nominal and tolerance and Traceability lists. The data collection interface provides real-time graphics for Run charts, Control charts, Histograms and Statistics.

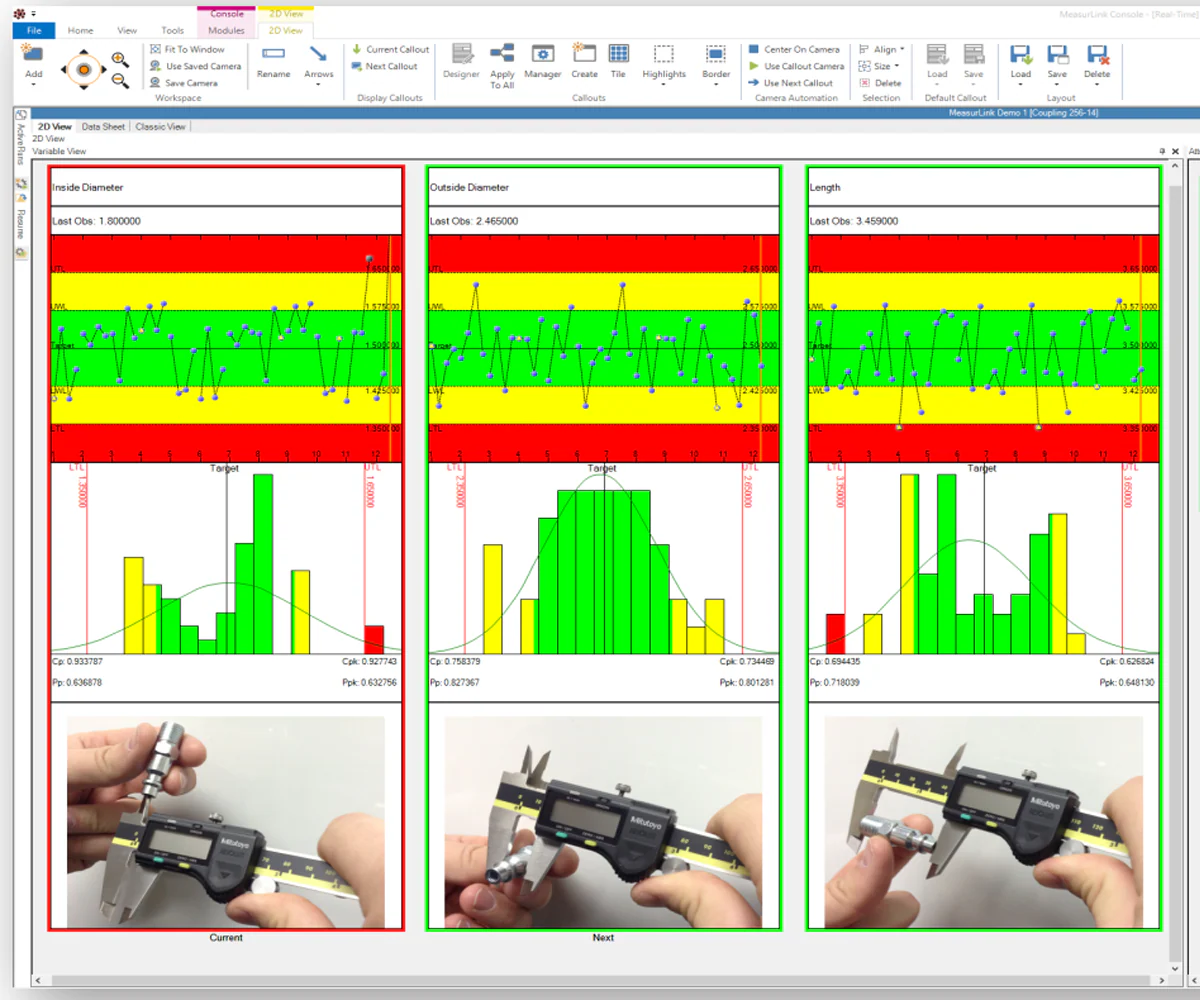

Standard views include Datasheet (observations and charts), Classic View (chart windows), and the 2D view (part images with callouts that include charts and statistical data) along with an especially customizable Info View and additional Manager views. Full reporting template functionality is also provided. Supported data sources include keyboard, RS232 and USB devices.

Mitutoyo MeasurLink Real-Time SPC Software Control Charts

Features & Benefits

User Friendly

Click a gage button and watch the charts update in real-time. This helps the operator stay on top of the process. Begin collecting data in minutes with Inspection Wizard.

Part Pictures

View scanned blueprints, digital photographs at a glance. On-screen guided sequencing keeps the operator moving to the right feature.

Comprehensive SPC

Easy-to-use Control Charts, Histograms,

Capability, Detailed statistics, Assignable Causes, Corrective Actions, and Traceability all make this software best in class.

Variable Collection Frequency

Allows characteristics of the same routine to be measured at different intervals while maintaining appropriate prompted guided sequencing.

Multimedia Aids

Attach movies (AVI, MOV, MPG), sound (WAV) and images (BMP, JPG, TIF) to parts, routines or individual characteristics as instructional aides for an operator.

Revision History

Track specification adjustments and preserve historical data.

Data Acquisition and Input

Collects data from digital micrometers, calipers, indicators, bore gages, etc. Keyboard entry is a snap. Collect data for one or a million parts. Begin collecting data in 60 seconds with a Quick Run by defining features, tolerances and input method. Flexible data input. Collect data by feature, by part or randomly. Guided sequencing minimizes inspection errors.

Mixed and Attribute Variable Data

Collect dimensional data (length, width, height, outside diameter, inside diameter weight, etc.). Supports derived features (calculations for run out, volume, true position, etc.) Mix your dimensions and non conformances in the same Inspection Routine. Track defects and defectives along with your dimensional data. Collect data from visual inspections (burrs, cracks, dents, missing holes, etc.) to determine the fitness of a part. Track failures using a go/no-go style or count the defects on a characteristic to determine if a part is defective. There is complete flexibility to study the individual characteristics and as a group of them, too.

Engineering Specifications

Attach drawings to parts, routines or individual characteristics for viewing. Most file formats are supported as an attachment (e.g.

Word, PDF).

Data Tests

Full support of Western Electric and Nelson?ÿTests for pattern recognition in control charts (e.g. extreme point, trend, stratification, oscillation, etc.) along with various alerts for each failed test.

Time Stamped Data

All observation data is marked with the data and time from the computer clock.

Corrective Plans

Operators choose corrective action as applied to the part or process. Multiple corrective actions can be applied to any subgroup. Empower operator to build on existing Corrective Action list.

Forced Assignable Cause

Force assignable cause tags on Inspector during collection if process is out of control. Empower operator to build on existing pick list.

Mitutoyo MeasurLink Brochure... Click here
